An Observing Light Standard for
Nightscape Photography and Visual Astronomy of the Deep Sky
(Lighting and Protecting Your Night Vision)

Maintaining good night vision is critical for observing faint subjects, whether distant galaxies, reading charts and observing guides, operating telescopes and cameras or even walking a trail in starlight with minimal lights. Some tasks like, reading star charts, does require some additional light than just star light.


The Night Photography Series:


All images, text and data on this site are copyrighted.
They may not be used except by written permission from Roger N. Clark.
All rights reserved.

If you find the information on this site useful, please support Clarkvision and make a donation (link below).


The common night observing light is a red light. But I have often observed that the red lights people use are so bright they will significantly harm night vision. A bright light of any color, when it is so bright that one actually sees strong color is probably too bright. The rods (night or scotopic vision) are more sensitive to light than are the cones (photopic vision) at ALL wavelengths (Figure 1). The data in Figure 1 shows that simply because a light is red, it can still harm night vision if too bright.

The keys to a good light for night work is that is must be DIM, and it should not be blue. Strong colors warp color perception, so do not use strongly colored lights, including red. I use yellow or orange colors.

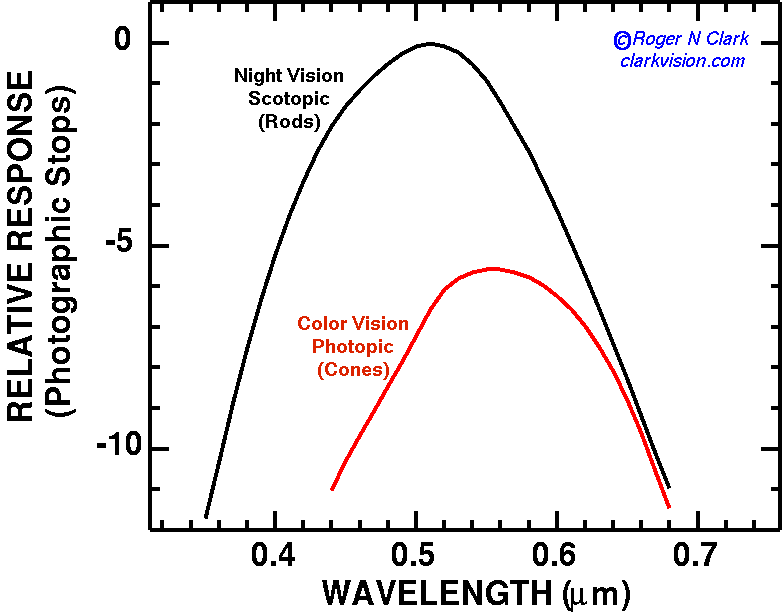

Figure 1. The relative response of rods and cones in photographic stops (factors of 2). Minus ten stops is 1/1024 times lower than the peak of the scotopic response.

Here is a possible way for everyone with a camera that has a lightmeter to check the brightness of their lights:

1) Use a camera with about a 50 mm (equivalent) lens set at f/8, and at ISO 1,000. (lens focal length should not affect the reading significantly.)

2) Place the flashlight right up next to the front of the lens (do not touch the lens--you might scratch it, a few mm away is fine. Shine the light into the camera. In the test I did with my light, the light fills the narrow length of the frame and about 2/3 of the long length, and, of course, it is not in focus.

3) Take an exposure reading in seconds.

I use a flashlight with an incandescent bulb that I've added a reostat to, a 2 cell flashlight with a 4 cell bulb and some paper to make a yellow-orange light. I also use LED flashlights where I have covered the flashlight with brown paper, or brown plastic in several layers to reduce the brightness.

At the light level that I use when deep-sky observing, the camera reads:

	4   sec f/8   (ISO 1000)
	2   sec f/5.6 (ISO 1000)
	1   sec f/4   (ISO 1000)
	1/2 sec f/2.8 (ISO 1000)
	1/4 sec f/2   (ISO 1000)
	1/8 sec f/1.4 (ISO 1000)

	2/3  sec f/4   (ISO 1600)  (0.6 sec)
	1/3  sec f/2.8 (ISO 1600)  (0.3 sec)
	1/6  sec f/2   (ISO 1600)
	1/13 sec f/1.4 (ISO 1600)


At levels of 1/4 sec, f/8, ISO 1000, the light is way too bright for maintaining great night vision. If you were to walk around and need ground light (flashlight pointed down, from waist level) I would suspect a level of about 1/10 sec would be dim but ok. If you are walking a trail fast, you may need brighter light, but it will impact night vision. When walking on complex trails at night I sometimes find I need a full white light bright flashlight to see where the trail goes. This, of course, harms night vision. Use the dim lights only when working with your gear at a site where moving around is not dangerous.

What do you get on your lights? Another question here might be how do camera light meters respond to red light? The answer is sensitivity is dropping off, so red readings may be low compared to green-orange. That means that if you do use a red light, then the 4 seconds at f/8 reading may not be accurate and your light is actually brighter.
